rustdesk安装使用

rustdesk：一款开源的远程控制软件

docker编排一次性部署好rustdesk-server和rustdesk-api

开放端口 TCP：21114-21119 UDP：21116

docker编排如下代码

 networks:
   rustdesk-net:
     external: false
 services:
   rustdesk:
     ports:
       - 21114:21114
       - 21115:21115
       - 21116:21116
       - 21116:21116/udp
       - 21117:21117
       - 21118:21118
       - 21119:21119
     image: lejianwen/rustdesk-server-s6:latest
     environment:
       - RELAY=<relay_server[:port]>
       - ENCRYPTED_ONLY=1
       - MUST_LOGIN=Y
       - TZ=Asia/Shanghai
       - RUSTDESK_API_RUSTDESK_ID_SERVER=<id_server[:21116]>  # 需要修改<>表示必填，[]表示选填，不过这里也填上，例如如改成 RUSTDESK_API_RUSTDESK_ID_SERVER = 182.168.198.1:21116
       - RUSTDESK_API_RUSTDESK_RELAY_SERVER=<relay_server[:21117]>
       - RUSTDESK_API_RUSTDESK_API_SERVER=http://<api_server[:21114]>
       - RUSTDESK_API_KEY_FILE=/data/id_ed25519.pub
       - RUSTDESK_API_JWT_KEY=xxxxxx #
     volumes:
       - /data/rustdesk/server:/data
       - /data/rustdesk/api:/app/data #将数据库挂载
     networks:
       - rustdesk-net
     restart: unless-stopped

下面是一个示例

 networks:
   rustdesk-net:
     external: false
 services:
   rustdesk:
     ports:
       - 21114:21114
       - 21115:21115
       - 21116:21116
       - 21116:21116/udp
       - 21117:21117
       - 21118:21118
       - 21119:21119
     image: lejianwen/rustdesk-server-s6:latest
     environment:
       - RELAY=147.56.53.13:21117
       - ENCRYPTED_ONLY=1
       - MUST_LOGIN=N
       - TZ=Asia/Shanghai
       - RUSTDESK_API_RUSTDESK_ID_SERVER=147.56.53.13:21116
       - RUSTDESK_API_RUSTDESK_RELAY_SERVER=147.56.53.13:21117
       - RUSTDESK_API_RUSTDESK_API_SERVER=http://147.56.53.13:21114
       - RUSTDESK_API_KEY_FILE=/data/id_ed25519.pub
       - RUSTDESK_API_JWT_KEY=      # 设置MUST_LOGIN=Y填，不然可以不填
     volumes:
       - /data/rustdesk/server:/data
       - /data/rustdesk/api:/app/data #将数据库挂载
     networks:
       - rustdesk-net
     restart: unless-stopped

参数提示

RELAY=<relay_server[:port]> #中继服务器:21117 MUST_LOGIN=N #默认为N，设置为Y 则必须登录才能链接 RUSTDESK_API_RUSTDESK_ID_SERVER=<id_server[:21116]> #ID服务器 RUSTDESK_API_RUSTDESK_RELAY_SERVER=<relay_server[:21117]> #中继服务器 RUSTDESK_API_RUSTDESK_API_SERVER=http://<api_server[:21114]> #API服务器 RUSTDESK_API_JWT_KEY=xxxxxx #随便设置个字符串 cat /data/id_ed25519.pub #进入到容器里面查看 key

api服务的访问地址在<ip或域名>:21114, 默认管理员账户为admin,密码进入容器通过以下命令修改 ./apimain reset-admin-pwd

下面的教程是很久之前写的，可能存在失效的情况

docker编排 (可以安装宝塔linux或者ipanel)

1. 如果服务器上面没东西，可以选择安装宝塔linux，一般云服务器厂商都提供了相应的镜像可以选择安装

2. 安装ipanel

sudo -s


#根据自己的系统选择脚本
#RedHat / CentOS
curl -sSL https://resource.fit2cloud.com/1panel/package/quick_start.sh -o quick_start.sh && sh quick_start.sh

#Ubuntu
curl -sSL https://resource.fit2cloud.com/1panel/package/quick_start.sh -o quick_start.sh && sudo bash quick_start.sh

#Debian
curl -sSL https://resource.fit2cloud.com/1panel/package/quick_start.sh -o quick_start.sh && bash quick_start.sh

# 随后根据提示安装

搭建中继服务器

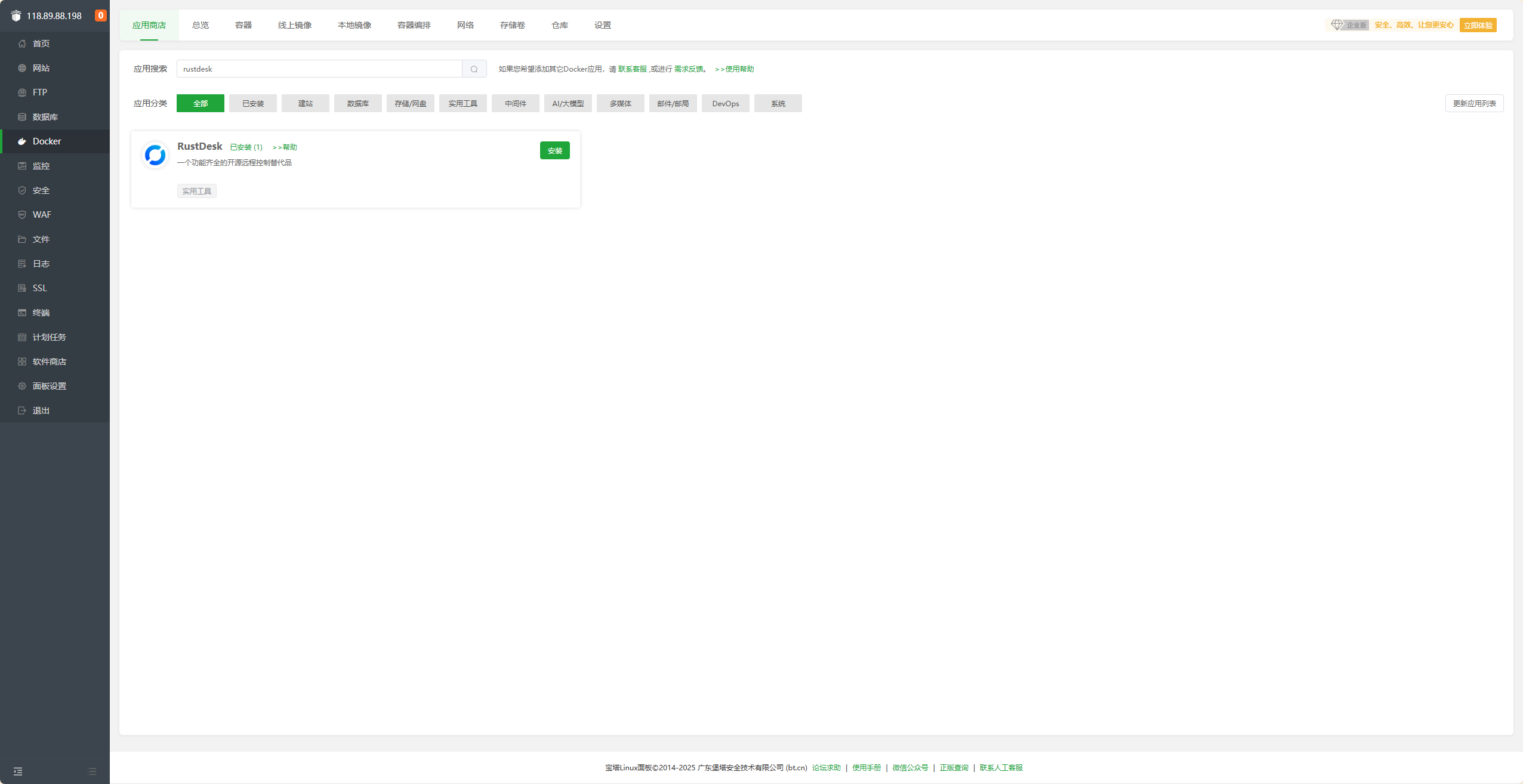

如果安装了宝塔面板的话，直接进入如下位置，然后再商店里面搜索就有，点击安装，然后查看日志，就可以看见key，记得把ke复制下来
如果是ipanel的话，可以使用编排进行，在编排日志里面可以看见key

services:
  rustdesk_Y662:
    image: rustdesk/rustdesk-server-s6:${VERSION}
    #    container_name: ${CONTAINER_NAME}
    deploy:
      resources:
        limits:
          cpus: ${CPUS}
          memory: ${MEMORY_LIMIT}
    environment:
        - RELAY=${RUSTDESK_HOST_ADDR}:${RUSTDESK_PORT_HBBR}
        - ENCRYPTED_ONLY=1
    ports:
        - ${HOST_IP}:${RUSTDESK_PORT_NAT}:21115
        - ${HOST_IP}:${RUSTDESK_PORT_HBBS}:21116
        - ${HOST_IP}:${RUSTDESK_PORT_HBBS}:21116/udp
        - ${HOST_IP}:${RUSTDESK_PORT_HBBR}:21117
        - ${HOST_IP}:${RUSTDESK_PORT_WEB_CLIENT_1}:21118
        - ${HOST_IP}:${RUSTDESK_PORT_WEB_CLIENT_2}:21119
    restart: always
    volumes:
        - ${APP_PATH}/data:/data
    labels:
      createdBy: "bt_apps"
    networks:
      - baota_net

networks:
  baota_net:
    external: true

到这一步就可以了，搭建api服务器会很麻烦

搭建api服务器

networks:
  rustdesk-net:
    external: false

services:
  rustdesk:
    image: lejianwen/rustdesk-api:full-s6
    ports:
      - "【所开发的端口，如：29288】:21114"    # 添加引号确保端口格式正确第一个是服务器开放的端口，是需要改的
    environment:
      RELAY: "【server_ip】:21117"
      ENCRYPTED_ONLY: "1"
      TZ: "Asia/Shanghai"
      RUSTDESK_API_RUSTDESK_ID_SERVER: "【server_ip】:21116"
      RUSTDESK_API_RUSTDESK_RELAY_SERVER: "【server_ip】:21117"
      RUSTDESK_API_RUSTDESK_API_SERVER: "http://【server_ip】:【所开发的端口，如：29288】"
    volumes:
      - /data/rustdesk/server:/data
      - /data/rustdesk/server:/app/conf/data
      - /data/rustdesk/api:/app/data
    networks:
      - rustdesk-net
    restart: unless-stopped

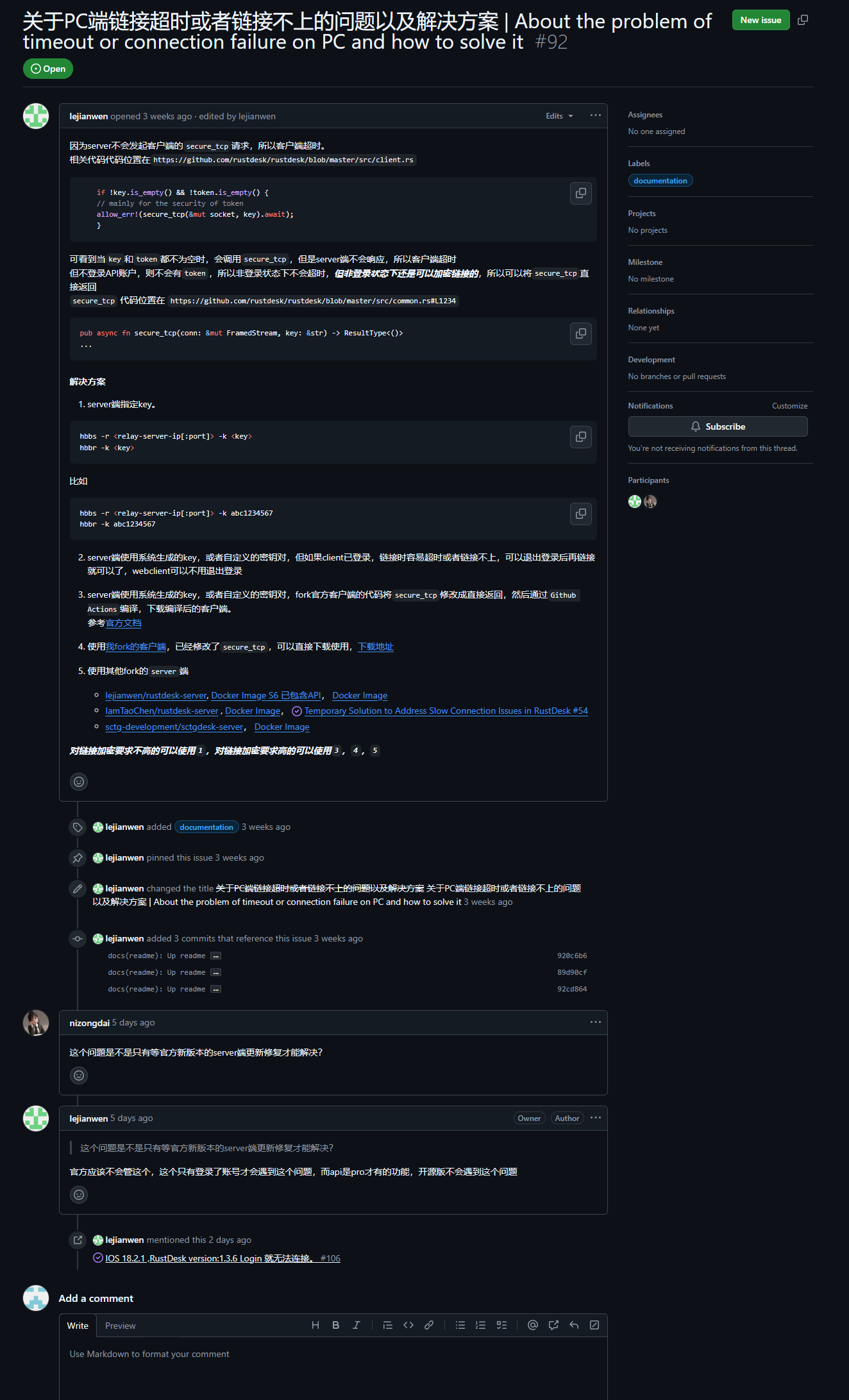

关于PC端链接超时或者链接不上的问题以及解决方案 | About the problem of timeout or connection failure on PC and how to solve it

https://github.com/lejianwen/rustdesk-api/issues/92

PC链接问题issue

参考:

https://www.smianao.com/1323.html https://www.smianao.com/1340.html https://github.com/lejianwen/rustdesk-api/issues/92
